RPD-150C(Ⅰ) -Rotary percussion drill- (used)

Home > Products > ☆SOLD OUT☆ RPD-150C(Ⅰ) -Rotary percussion drill- (used)
Used machines
RPD-150C(Ⅰ) -Rotary percussion drill- (used)







NOTE

※ The condition is good. The machine is ready to use.
※ The delivery from the factory: To be discussed.
※ The Cleaning swivel, Rod guide, Piece are not included.
※ Approx. packing size & weight : 44.830M3 & 12,000kgs , Main unit in bare.
※ The hour meter indicates 10940/h
※ First come First service.

Model RPD-150C
Drilling dia. mm 101 – 170 (max. 225 mm)
Bit rotation rpm 36 – 80
Torque kgf-m 800
Percussion blow bpm 2,200
Percussion energy kgf-m 75
Thrust kgf 6,000
Stroke length mm 2,760
Power unit (Engine) PS/rpm 111 / 1800
Dimensions mm 7,240 x 2,400 x 2,580
Weight kg 12,000

*This list is the original specification just for your reference.

☆SOLD OUT☆ RPD-150C(Ⅰ) -Rotary percussion drill- (used)
[Nameplate]
Model: RPD-150C / Manufacture date: July 2003
Indicators - rotation, thermo-meter, etc.

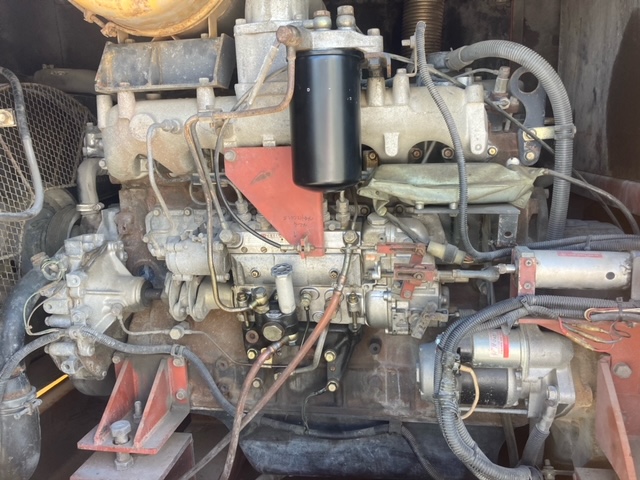

Engine
Backward at close range
Indicator lamp

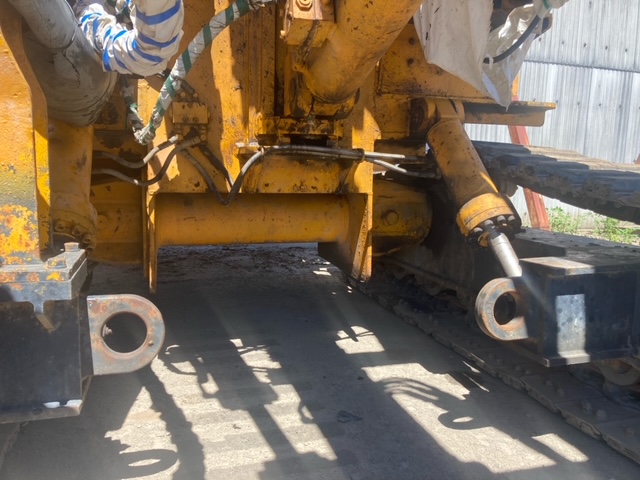

Crawler base
Front view at close range
Cramp and Breaker device
Controller

Drilling Tools
An overburden drilling system (Double-tube drilling) for rotary percussion drill is available.

⇨ More information: Drilling tools /  KOKEN Overburden drilling system
